USB-A charging cabinets & carts
Integrated 12W charging for 16 to 48 tablets
Four high-density units delivering 5V / 2.4A per port for tablet and compact-device fleets, from a 16-device wall cabinet to a 48-device three-tier cart.
JM-CCWM-USB16
Why organisations choose it
Integrated charging removes adapter management entirely from a tablet fleet.
48 slots in one cart covers two class sets from a single power connection.
Optional USB-C, Lightning and Android cables suit a mixed tablet estate.
Available models
4 models in this family.

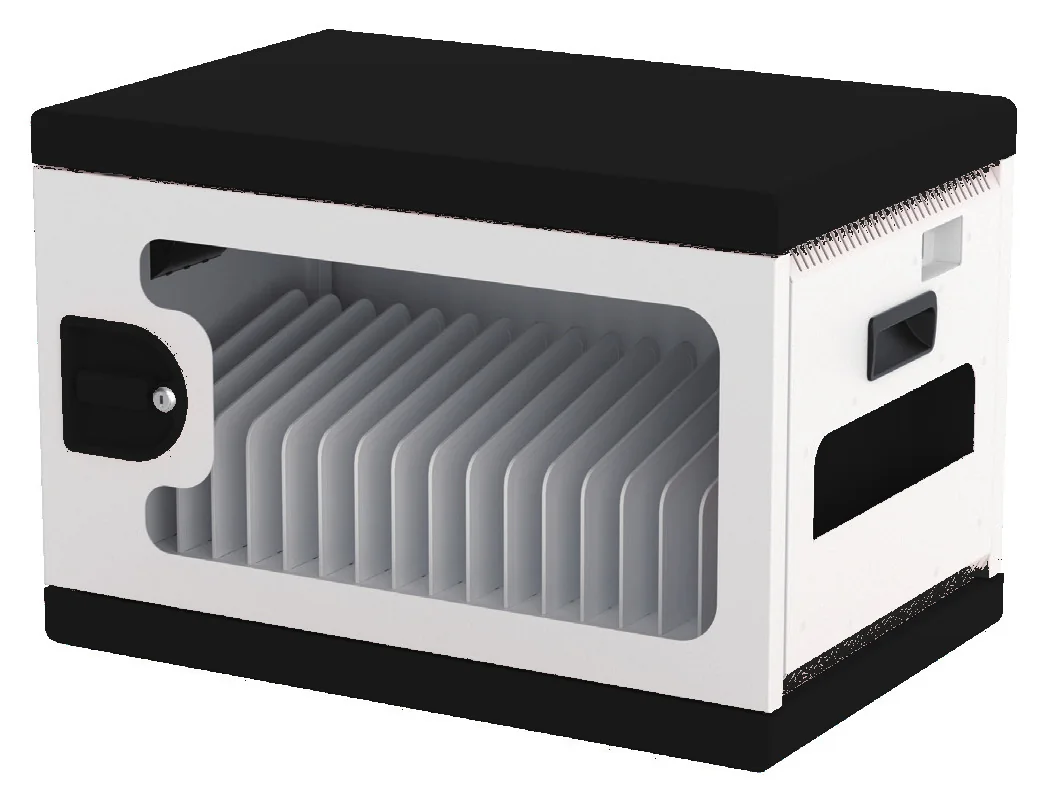

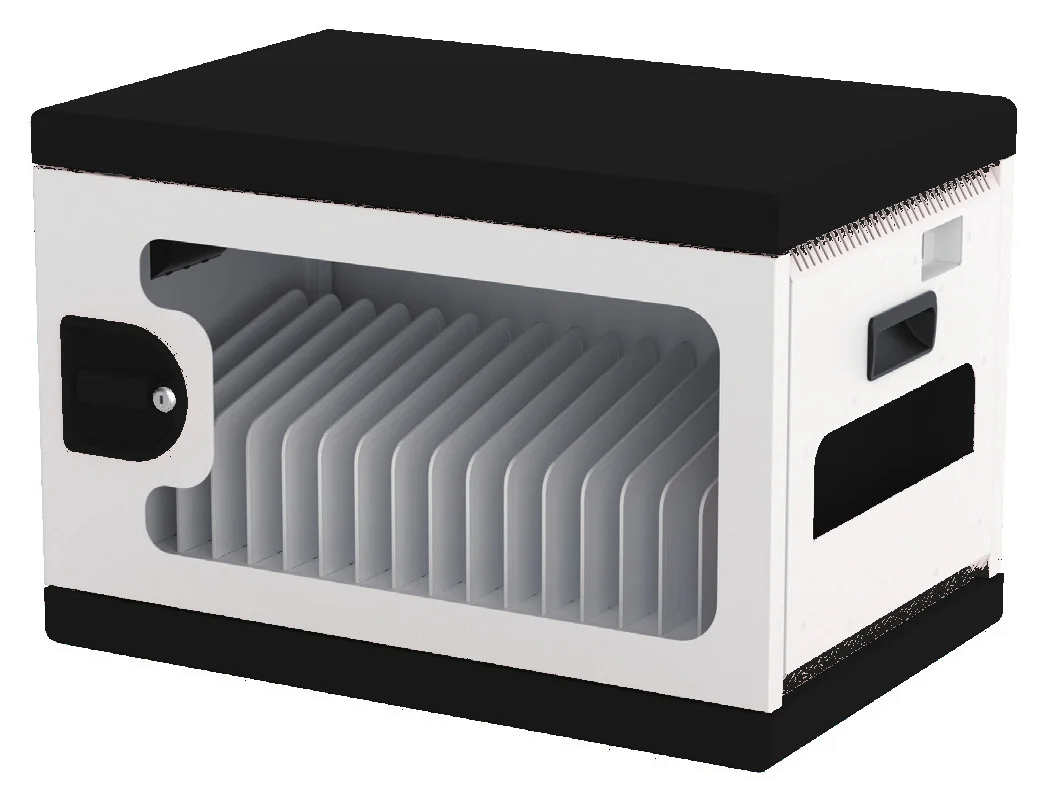

JM-CCWM-USB16
- Capacity
- 16 devices
- Charging
- 12W per port, 200W supply
- Max device
- 12.9"
- Unit dimensions
- 58.8 × 38 × 39.2 cm
- Unit weight
- 28 kg
- Power input
- 100-250V AC, 50/60Hz
JM-CCF-USB32
- Capacity
- 32 devices, 2 tiers
- Charging
- 12W per port, 400W max
- Max device
- —
- Unit dimensions
- 60 × 43 × 83 cm
- Unit weight
- 48 kg
- Power input
- 100-250V AC, 50/60Hz
JM-CCF-USB48
- Capacity
- 48 devices, 3 tiers
- Charging
- 12W per port, 600W max
- Max device
- —
- Unit dimensions
- 60 × 43 × 110 cm
- Unit weight
- 58 kg
- Power input
- 100-250V AC, 50/60Hz
AIR USB 32
- Capacity
- 32 devices, 2 tiers
- Charging
- 12W per port, 2 × 200W supplies
- Max device
- 12.9"
- Unit dimensions
- 58 × 38 × 78 cm
- Unit weight
- 43 kg
- Power input
- 100-250V AC, 50/60Hz
| Model | Capacity | Charging | Max device | Unit dimensions | Unit weight | Power input |
|---|---|---|---|---|---|---|
| JM-CCWM-USB16 | 16 devices | 12W per port, 200W supply | 12.9" | 58.8 × 38 × 39.2 cm | 28 kg | 100-250V AC, 50/60Hz |
| JM-CCF-USB32 | 32 devices, 2 tiers | 12W per port, 400W max | — | 60 × 43 × 83 cm | 48 kg | 100-250V AC, 50/60Hz |
| JM-CCF-USB48 | 48 devices, 3 tiers | 12W per port, 600W max | — | 60 × 43 × 110 cm | 58 kg | 100-250V AC, 50/60Hz |
| AIR USB 32 | 32 devices, 2 tiers | 12W per port, 2 × 200W supplies | 12.9" | 58 × 38 × 78 cm | 43 kg | 100-250V AC, 50/60Hz |
Technical specification
Charging
- Output
- 5V / 2.4A per port
- Cables
- Optional USB-C, Lightning and Android charging cables
- Indication
- LED power and charging status
Security & mobility
- Locking
- Two-point lock
- Mobility
- Heavy-duty castors on cart models; wall-mount or stacked on the cabinet
- Organisation
- Removable device dividers
Construction
- Enclosure
- Lockable powder-coated steel with cable management
- Cooling
- Active cooling with overload protection
- Service
- Pull-out power systems and replaceable dividers
Warranty & compliance
- Warranty
- 2 years steel enclosure, 1 year electronics
- Compliance
- CE (TUV), RoHS
Configuration options
- Custom options
- Finish, plug type, divider spacing, castors, cable sets and access control
- Confirmation
- Subject to quantity and final engineering review
